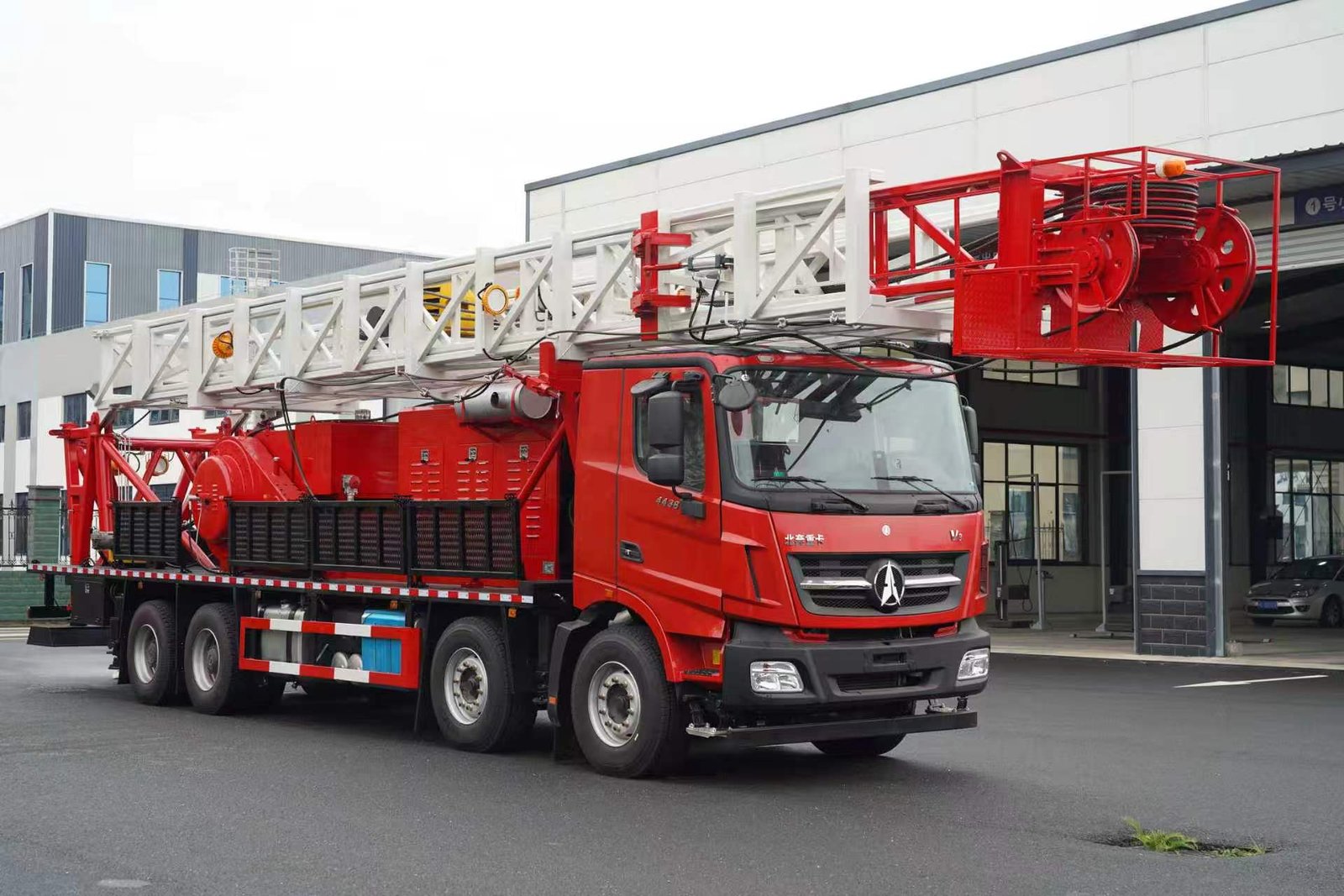

8×4 Beiben Truck-Mounted Workover Rig — 600 kN Rated Hook Load
Heavy-duty mobile workover unit with a 24 m mast, 900 kN maximum hook load and nominal workover depth up to 4,000 m, engineered for oil and gas well servicing, tubing operations and major workover jobs.
Rated Hook Load
Maximum Hook Load
Mast Height
Nominal Workover Depth*

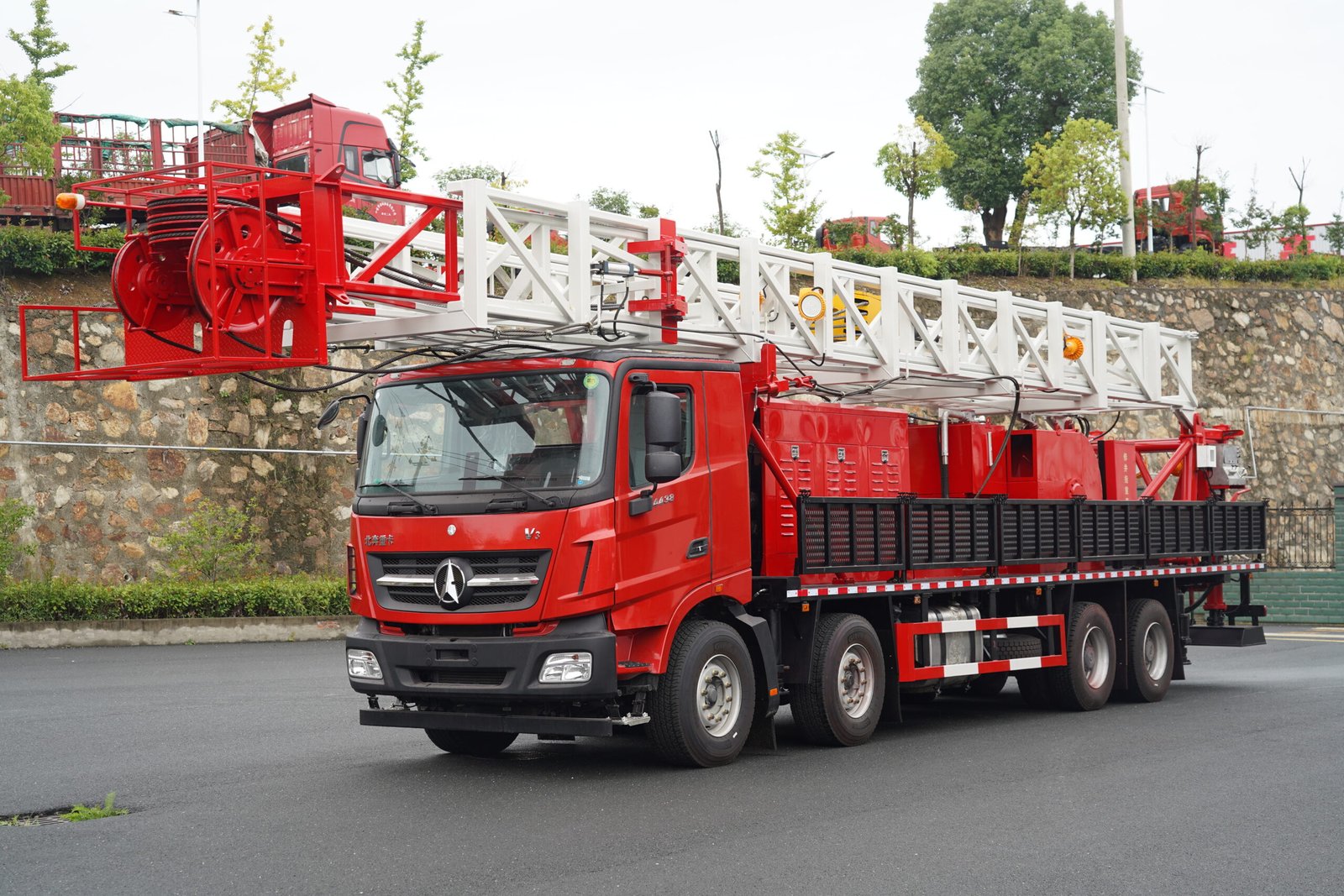

Mobile Workover Rig Built on an 8×4 Beiben Chassis
This truck-mounted workover rig combines a heavy-duty 8×4 Beiben chassis with a hydraulically erected double-section mast and single-drum hoisting system. It is intended for field mobility and well-servicing operations where fast relocation, high hook-load capacity and reliable chassis performance are required.
Typical applications include tubing pulling and running, well maintenance, pump replacement, fishing support, light workover and selected major workover operations. Final operating depth and load capability should be confirmed against the customer’s well program, string design and local operating conditions.
Technical Specifications
The following configuration is based on the described 8×4 Beiben workover rig. Specifications can be adjusted for project, climate, certification and well-service requirements.
| Workover System | |
|---|---|
| Mast | 24 m; front-open, two-section telescopic mast |
| Rated hook load | 600 kN (approx. 60 t) |
| Maximum hook load | 900 kN (approx. 90 t) |
| Light workover depth | 3,500–4,000 m with φ73 mm tubing |
| Major workover depth | 2,500–3,200 m with φ89 mm drill pipe |
| Travelling system | 4×3 (12 lines) / 3×4 (10 lines) |
| Hook lifting speed | 0.2–1.4 m/s |
| Drawworks | Single drum, φ400–450 mm; line capacity ≥1,200 m with φ26 mm wire rope |
| Braking | Main brake: hydraulic disc / band type; auxiliary brake: water brake / pneumatic disc type |

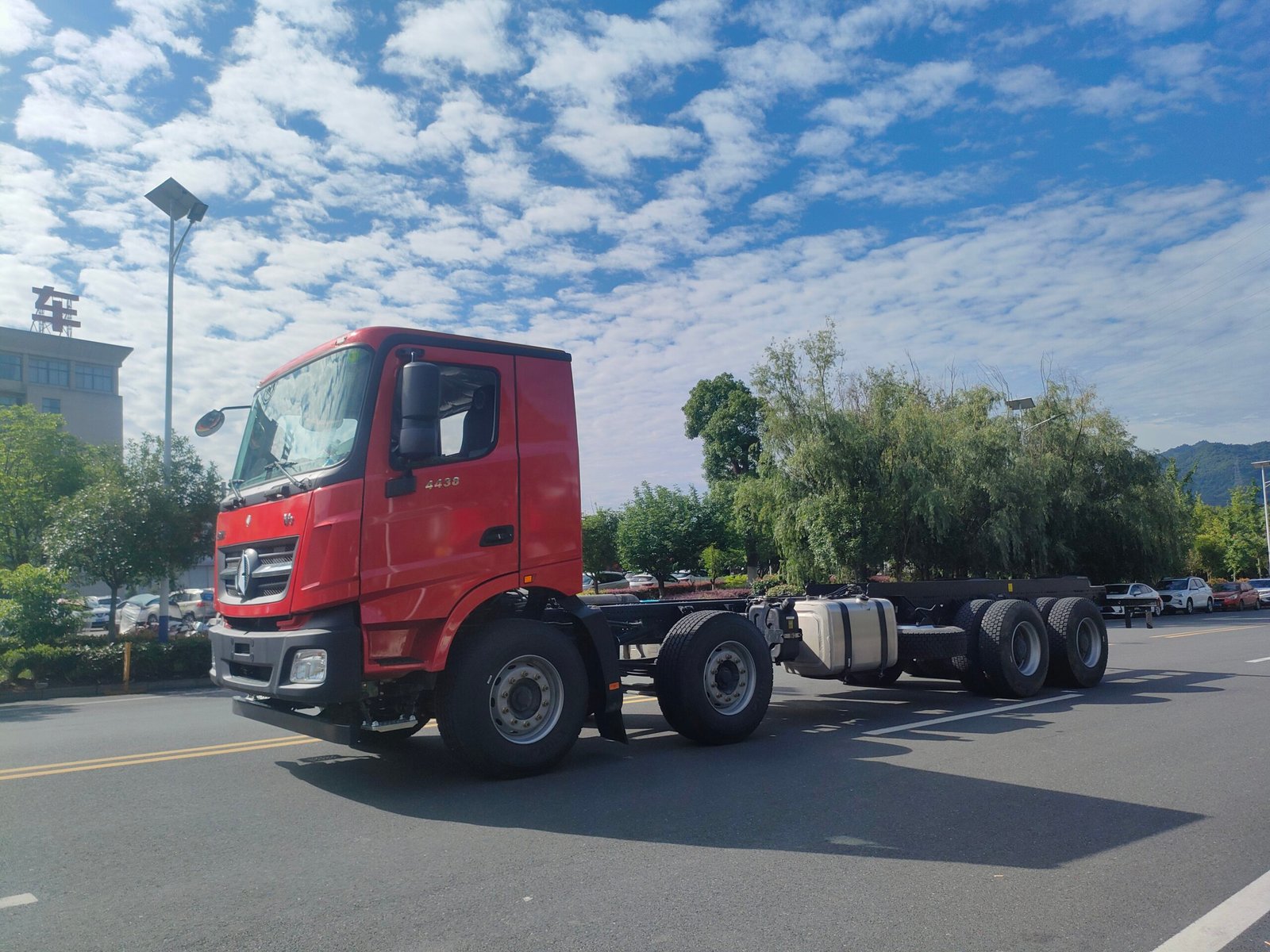

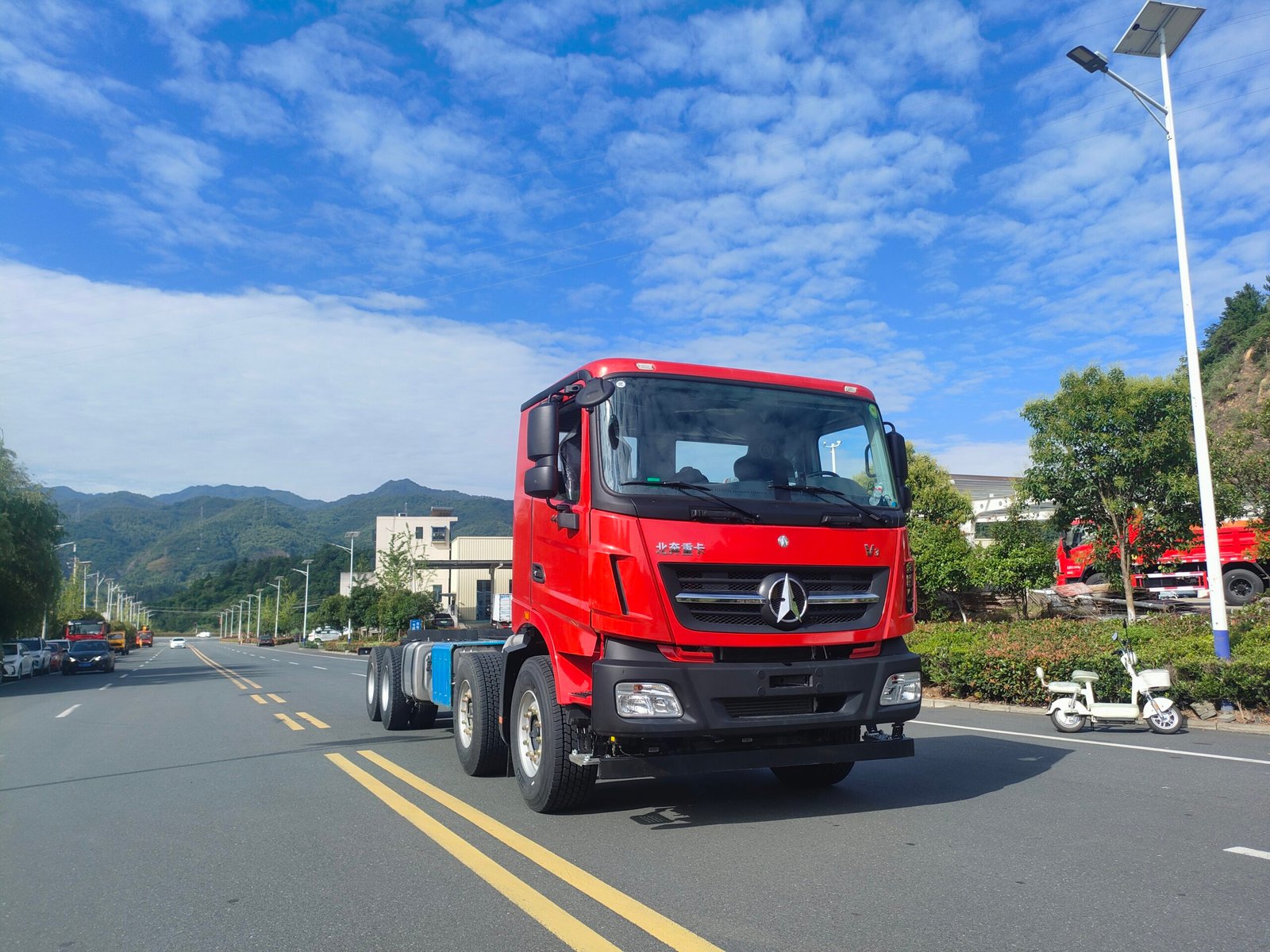

| Beiben 8×4 Chassis | |
|---|---|
| Cab | V3 medium-long cab, low roof |
| Engine | WP10H375E62 |
| Transmission | 12JS0180T |
| Steering gear | Z202H |
| Drive axle / ratio | 16 t Beiben double-reduction axle / 4.769 |
| Safety | ABS + inter-wheel differential lock |
| Wheelbase | 1950 + 4600 + 1450 mm |
| Curb weight | 12,200 kg (chassis configuration as supplied) |
| Front tires | 385/65R22.5-20PR |
| Rear tires | 315/80R22.5-18PR |
| Fuel tanks | 400 L + 400 L aluminum alloy |
Rig, Rotary and Safety Equipment
Hydraulic Mast
Front-open double-section mast with hydraulic erection and telescoping. Working-height range for this product family is typically 21–29 m, with the described unit configured with a 24 m mast.
Rotary & Swivel
Rotary table through-bore φ292 mm with torque ≥30 kN·m. Swivel center-tube bore φ63.5 mm with 70 MPa static water-pressure rating.
Safety Systems
Crown-block anti-collision, electronic hook anti-collision and hydraulic outriggers support safer rig-up and hoisting operations.
Chassis Features for Oilfield Work
Dual Fuel Tanks
400 L + 400 L aluminum-alloy fuel tanks support extended operation and field mobility.
Remote Engine Controls
Second hand throttle, under-chassis engine start/stop controls and engine operating signals for rpm, coolant temperature and oil pressure.
Heavy-Duty Frame Preparation
Rear load-bearing frame plate arrangement and reserved installation provisions support workover superstructure integration.
Frequently Asked Questions
What is the rated hook load of this workover rig?
The rated hook load is 600 kN, approximately 60 metric tons. Maximum hook load is 900 kN, approximately 90 metric tons.
How deep can this truck-mounted workover rig operate?
Nominal workover depth is approximately 3,500–4,000 m with φ73 mm tubing for light workover and approximately 2,500–3,200 m with φ89 mm drill pipe for major workover. Actual capability depends on the well program, string weight and final rig configuration.
Can the chassis and rig configuration be customized?
Yes. Engine, transmission, axle ratio, mast height, braking configuration, safety systems and auxiliary equipment can be reviewed against project specifications and local regulations.
Who manufactures this workover rig?
Hubei Link Petroleum Equipment Co., Ltd. supplies truck-mounted workover rigs and related oilfield equipment from China for international oilfield projects.
Request a Technical Proposal for Your Well Program
Send us your target well depth, tubing/drill-pipe size, required hook load, destination country, emission requirement and preferred chassis. We will recommend a suitable truck-mounted workover rig configuration and commercial proposal.
Hubei Link Petroleum Equipment Co., Ltd.
China Workover Rig Manufacturer & Oilfield Equipment Supplier
* Nominal depth figures are configuration-dependent and should be verified against the customer’s actual well conditions and lifting program.
